Linh kiện công nghiệp - van lọc nước Ptech

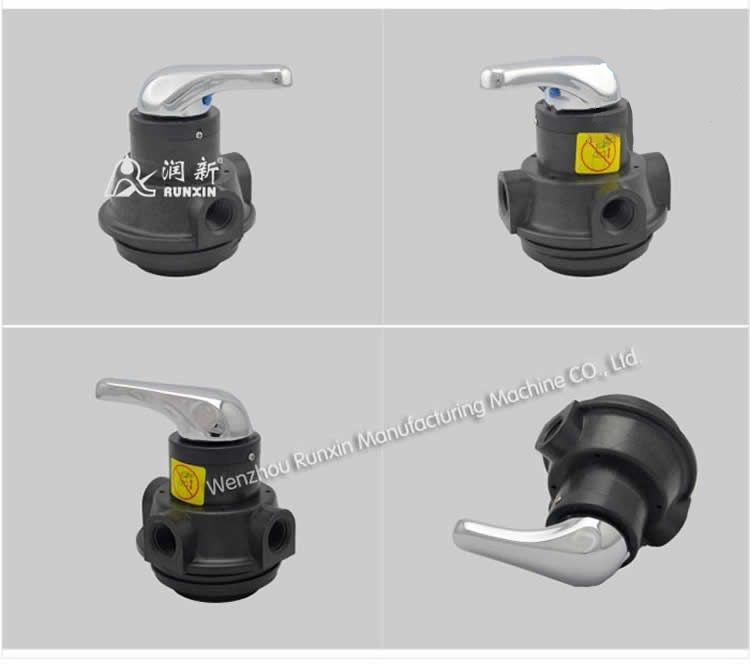

Van lọc Runxin 51201B (F56B)
Hãng sản xuất:
Liên hệ
-
Chi tiết sản phẩm
-
Thông tin thêm
Technical Parameters:
- Water Pressure-----0.15—0.6MPa
- Water Temperature--5℃-45℃
- Water Turbidity------＜20FTU
- Inlet/Outlet---------1/2″or 3/4″F
- Drain----------------1/2″ or 3/4″F
- Base----------------Tr95×6 or φ98 saead
- Riser Pipe--------1.05″OD
- Max Flow Rate---1 m3/h
- Suitable Tank Size (in)-10″filter housing
Product Characteristics
- It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
- No water passes the valve in rinse in single tank type.
- Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
- It can be changed to be side-mounted valve with side-mounted connector.
- It can operate under pressure, without leakage.
Range of Application
- Residential filtration system
- Swimming pool filtration equipment
- Active carbon or sand filter in RO pretreatment filtration system
