Linh kiện công nghiệp - van lọc nước Ptech

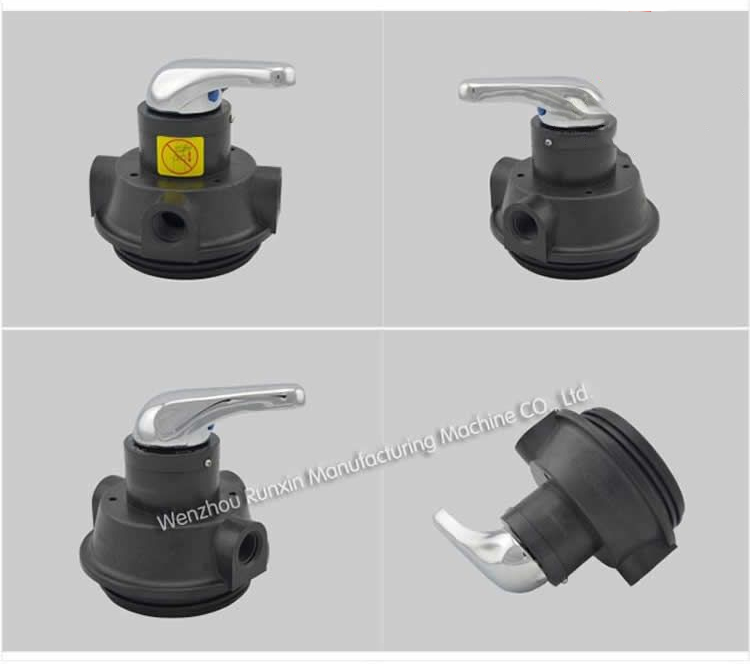

Van lọc Runxin 51201C (F56C)
Hãng sản xuất:
Liên hệ
-
Chi tiết sản phẩm
-
Thông tin thêm
Technical Parameters
- Water Pressure--0.15—0.6MPa
- Water Temperature-5℃-50℃
- Water Turbidity----＜20FTU
- Inlet/Outlet--------1/2″or 3/4″F
- Drain-------------1/2″or 3/4″F
- Base--------------Tr118×6 or Tr110×6
- Riser Pipe---------1.05″OD
- Max Flow Rate---1 m3/h
- Suitable Tank Size (in)--20″filter housing
Product Characteristics：
- It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
- No water passes the valve in rinse in single tank type.
- Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
- It can be changed to be side-mounted valve with side-mounted connector.
- It can operate under pressure, without leakage.
Range of Application:
- Residential filtration system
- Swimming pool filtration equipment
- Active carbon or sand filter in RO pretreatment filtration system
(1)_1732691348.webp)
