Giải pháp công nghệ lọc nước Ptech

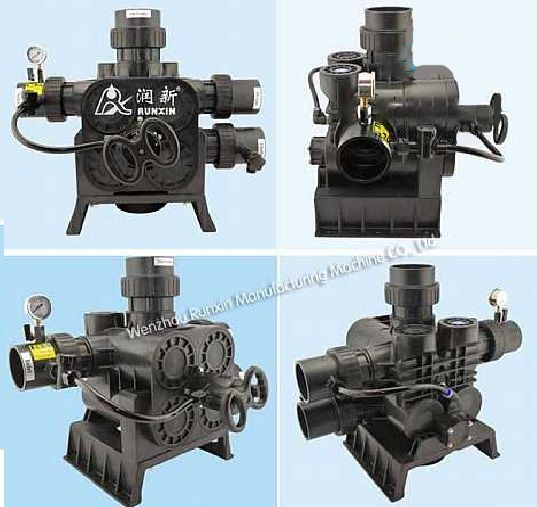

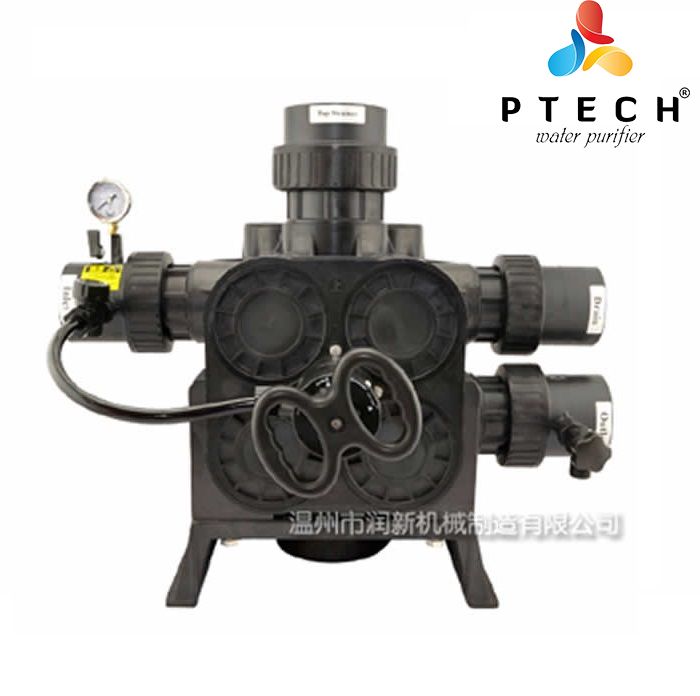

Van tự động Runxin 51230 (F78BS)
Hãng sản xuất:
Giá bán: 0 vnđ
Mô tả ngắn
- Van tự động Runxin 51230 (F78BS)
- Ứng dụng rộng rãi cho các cột lọc: Công nghiệp, dân dụng
.jpg)
Technical Parameters:
- Water Pressure---------0.2—0.6MPa
- Water Temperature----5℃-50℃
- Water Turbidity---------＜10FTU
- Inlet/Outlet---------------DN65
- Drain----------------------DN65
- Top and Bottom Strainer -DN80
- Max Flow Rate---------30 m3/h
- Suitable Tank Size (in)--24″～42″
Product Characteristics
- It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
- The main valve uses the structure of four tee pistons. The distribution valve is combined with main valve.
- No water passes the valve in rinse in single tank type.
- The valve installs in side of tank, easy to operate.
Range of Application
- Residential filtration system
- Swimming pool filtration equipment
- Active carbon or sand filter in RO pretreatment filtration system
(1).png)
