Linh kiện công nghiệp - van lọc nước Ptech

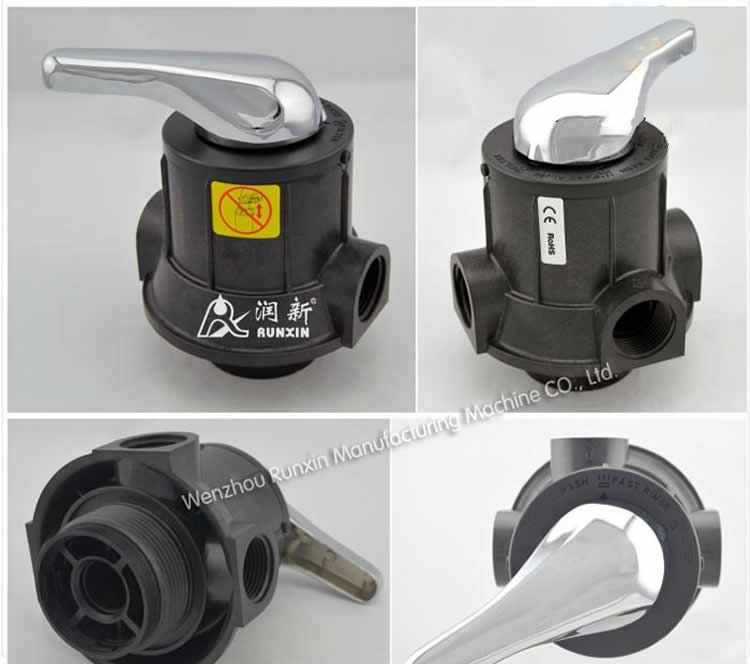

Van lọc Runxin 51104 (F56A)
Hãng sản xuất:
Liên hệ
Mô tả ngắn
- Van tự động Runxin 51104 (F56A)
- Ứng dụng rộng rãi cho các cột lọc: Công nghiệp, dân dụng
-
Chi tiết sản phẩm
-
Thông tin thêm
Technical Parameters:
- Water Pressure---0.15—0.6MPa
- Water Temperature-5℃-45℃
- Water Turbidity---<20FTU
- Inlet/Outlet-----------1″F
- Drain-----------------1″F
- Base------------------2.5″-8NPSM
- Riser Pipe--------1.05″OD
- Max Flow Rate----4 m3/h
- Suitable Tank Size (in)--6″~12″
Product Characteristics
- It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
- No water passes the valve in rinse in single tank type.
- Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
- It can be changed to be side-mounted valve with side-mounted connector.
- It can operate under pressure, without leakage.
Range of Application
- Residential filtration system
- Swimming pool filtration equipment
- Active carbon or sand filter in RO pretreatment filtration system
