Giải pháp công nghệ lọc nước Ptech

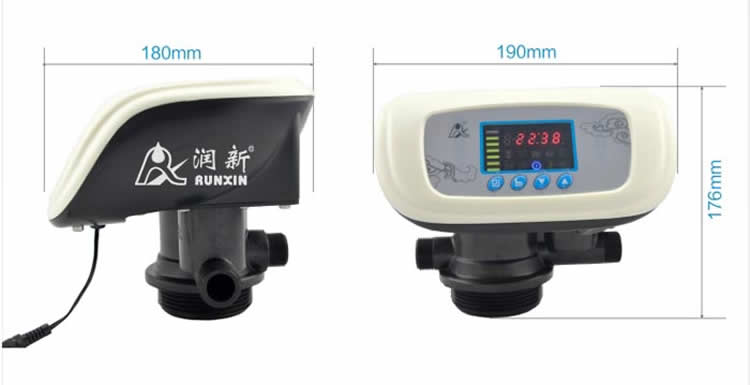

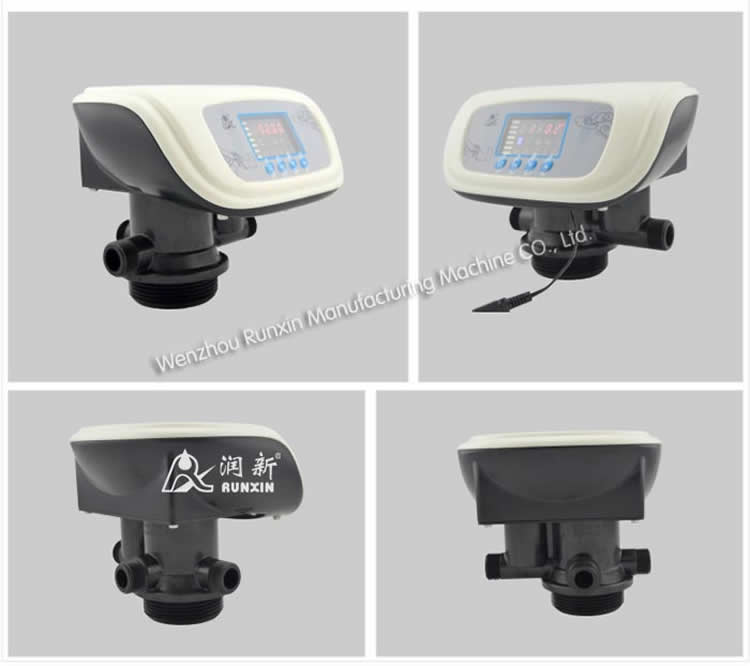

Van tự động Runxin 53502B (F71G1)
Hãng sản xuất:
Giá bán: 0 vnđ
Mô tả ngắn
- Van tự động Runxin
- Ứng dụng rộng rãi cho các cột lọc: Công nghiệp, dân dụng
Technical Parameters:
- Water Pressure------------------------------------------------0.15—0.6MPa
- Water Temperature-------------------------------------------5℃-50℃
- Transformer Output-------------------------------------------DC12V、1.5A
- Water Turbidity------------------------------------------------＜20FTU
- Inlet/Outlet-------------------------------------------------------3/4″F
- Drain--------------------------------------------------------------3/4″F
- Base---------------------------------------------------------------2.5″-8NPSM
- Riser Pipe--------------------------------------------------------1.05 ″OD
- Max Flow Rate---------------------------------------------------2 m3/h
- Suitable Tank Size (in)-----------------------------------------6″～10″
Product Characteristics:
- It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
- No water passes the valve in rinse in single tank type.
- LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
- Having long outage indicator
- It could set up rinsing frequence
- There are two kinds of time clock types: by hours or by days
- Buttons are locked when no operation within 1 minute
- Having interlock function
- With signal output connector
- With remote handling input connector
- With pressure relief connector
- All parameters can be modified according to the need
Range of Application:
- Residential filtration system
- Swimming pool filtration equipment
- Active carbon or sand filter in RO pretreatment filtration system
(1).png)
