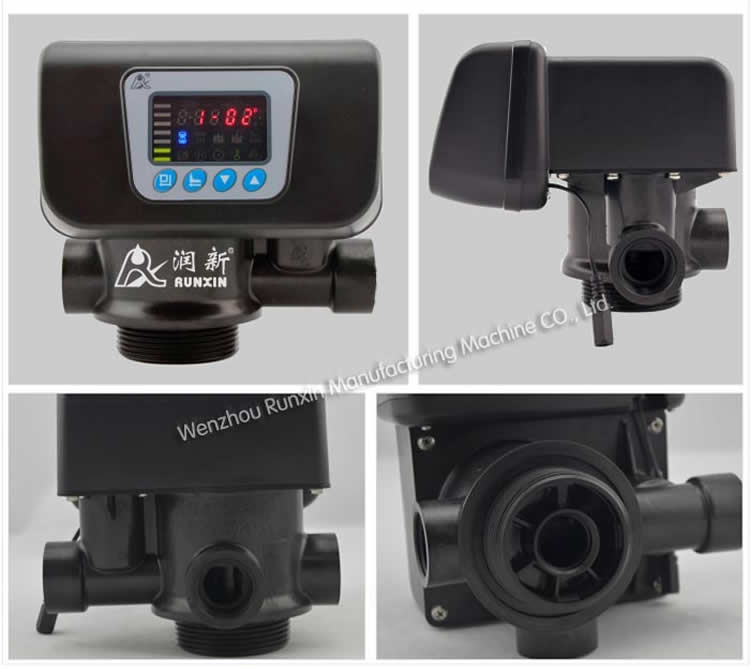

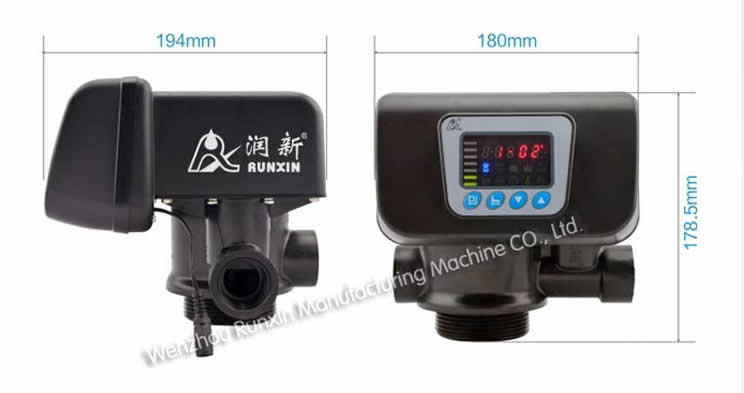

Van tự động Runxin 53504 (F67C)

Technical Parameters:

     - Water Pressure--------------0.15—0.6MPa

     - Water Temperature--------5℃-50℃

     - Transformer Output--------DC12V、1.5A

     - Water Turbidity-------------＜20FTU

     - Inlet/Outlet-------------------1″F

     - Drain--------------------------1″F

     - Base--------------------------2.5″-8NPSM

     - Riser Pipe-------------------1.05 ″OD

     - Max Flow Rate------------4 m3/h

     - Suitable Tank Size (in)---6″～14″

Product Characteristics:

     - It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.

     - No water passes the valve in rinse in single tank type.

     - LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.

     - Having long outage indicator

     - It could set up rinsing frequence

     - There are two kinds of time clock types: by hours or by days

     - Buttons are locked when no operation within 1 minute

     - Having interlock function

     - With signal output connector

     - With remote handling input connector

     - With pressure relief connector

     - All parameters can be modified according to the need

Range of Application:

    - Residential filtration system

    - Swimming pool filtration equipment

    - Active carbon or sand filter in RO pretreatment filtration system
