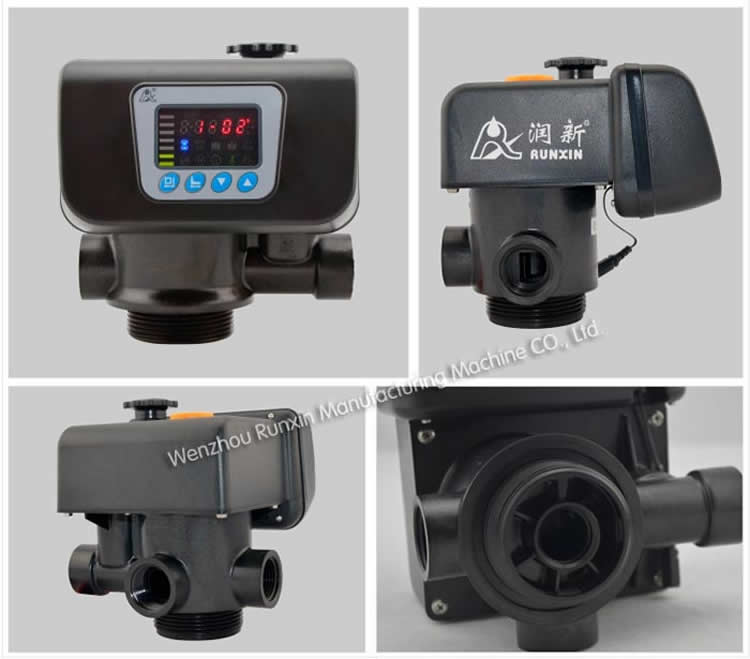

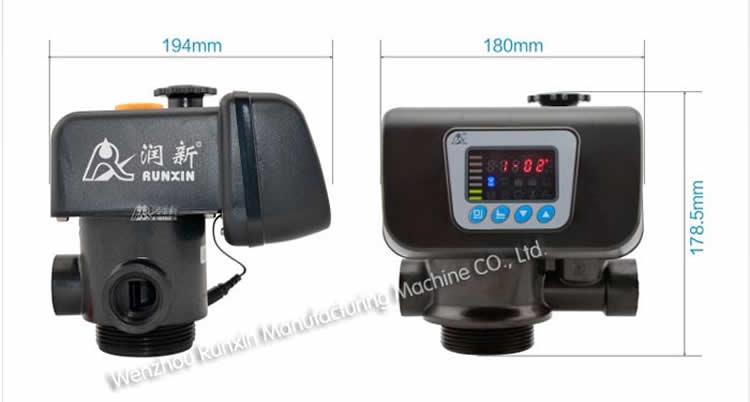

Van tự động Runxin 53504S (F67B)

Technical Parameters

     - Water Pressure-----------0.15—0.6MPa

     - Water Temperature---------5℃-50℃

     - Transformer Output--------DC12V、1.5A

     - Water Turbidity------------＜20FTU

     - Inlet/Outlet------------------1″F

     - Drain-------------------------1″F

     - Base--------------------------2.5″-8NPSM

     - Riser Pipe-------------------1.05 ″OD

     - Max Flow Rate-------------4 m3/h

     - Suitable Tank Size (in)---6″～14″

Product Characteristics:

    - It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.

    - No water passes the valve in rinse in single tank type.

    - LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.

    - Having long outage indicator

    - It could set up rinsing frequence

    - There are two kinds of time clock types: by hours or by days

    - Buttons are locked when no operation within 1 minute

    - Having interlock function

    - With signal output connector

    - With remote handling input connector

    - With pressure relief connector

    - All parameters can be modified according to the need

Range of Application:

    - Residential filtration system

    - Swimming pool filtration equipment

    - Active carbon or sand filter in RO pretreatment filtration system
