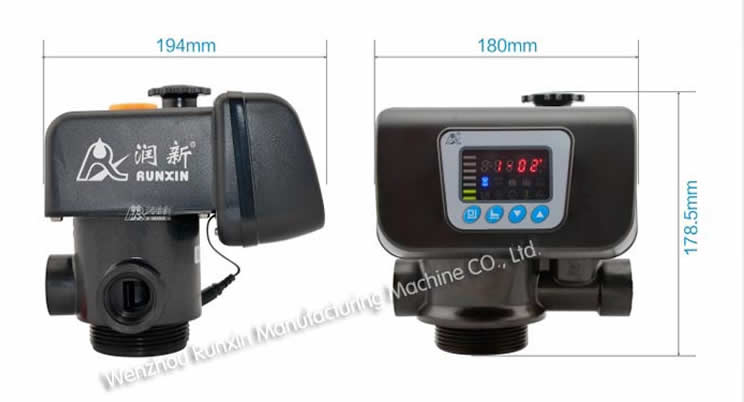

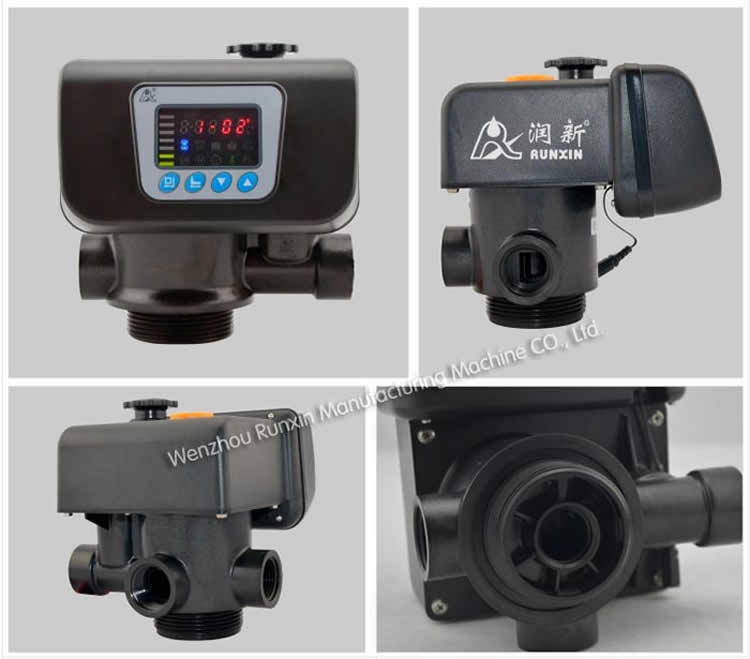

Van tự động Runxin 53506S (F67B-A)

Technical Parameters

    - Water Pressure---------0.15—0.6MPa

    - Water Temperature-----5℃-50℃

    - Transformer Output-----DC12V、1.5A

    - Water Turbidity------＜20FTU

    - Inlet/Outlet----------------1″F

    - Drain------------------------1″F

    - Base----------------------2.5″-8NPSM

    - Riser Pipe---------------1″D -GB

    - Max Flow Rate----------6 m3/h

    - Suitable Tank Size (in)-6″～14″

Product Characteristics

    - It adopts hermetic head faces with high degree pottery and corrosion resistancefor opening and closing.

    - No water passes the valve in rinse in single tank type.

    - LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.

    - Having long outage indicator

    - It could set up rinsing frequence

    - There are two kinds of time clock types: by hours or by days

    - Buttons are locked when no operation within 1 minute

    - Having interlock function

    - With signal output connector

    - With remote handling input connector

    - With pressure relief connector

    - All parameters can be modified according to the need

Range of Application

    - Residential filtration system

    - Swimming pool filtration equipment

    - Active carbon or sand filter in RO pretreatment filtration system
