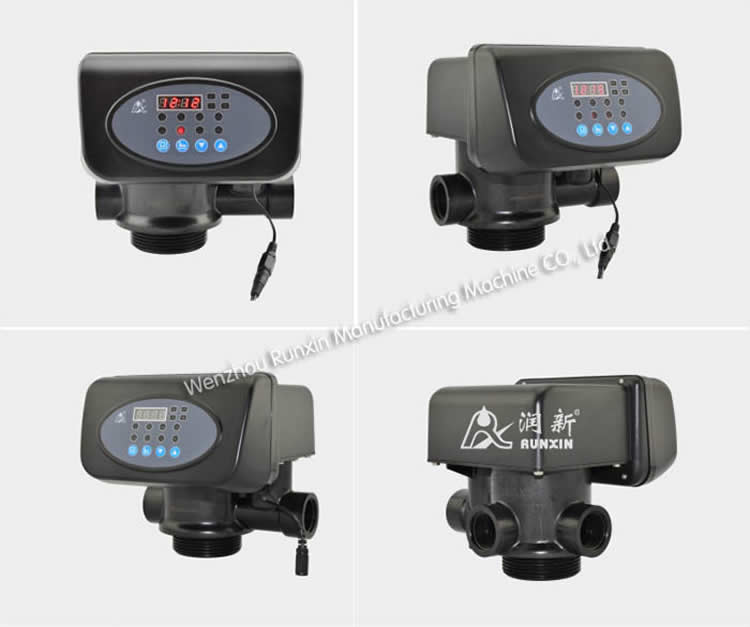

Van tự động Runxin 63504P (F67P)

Technical Parameters

      - Water Pressure-------------0.15—0.6MPa

      - Water Temperature---------5℃-50℃

      - Transformer Output--------DC12V、1.5A

      - Water Turbidity-------------＜20FTU

      - Inlet/Outlet---------------1″F

      - Drain---------1″F

      - Base--------------------2.5″-8NPSM

      - Riser Pipe-------------------1.05 ″OD

      - Max Flow Rate-------------4 m3/h

      - Suitable Tank Size (in)---6″～14″

Product Characteristics:

     - It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.

     - No water passes the valve in rinse in single tank type.

     - LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.

     - Having long outage indicator

     - It could set up rinsing frequence

     - There are two kinds of time clock types: by hours or by days

     - Buttons are locked when no operation within 1 minute

     - Having interlock function

     - With signal output connector

     - With remote handling input connector

     - With pressure relief connector

     - All parameters can be modified according to the need

Range of Application:

     - Residential filtration system

     - Swimming pool filtration equipment

     - Active carbon or sand filter in RO pretreatment filtration system
